The steering system, together with the suspension system, enables you to easily and safely control the direction of your car while you drive it.
To do this, the steering system works with parts of the suspension to offer the correct turning movements of your vehicle.
Aside from connecting you to the wheels, the steering system also offers feedback to the driver from the front tires.
This feedback is known as road feel. You can use this to figure out how your car is handling. If you want to understand your car’s steering system, you need to see a steering rack Components.
1. What is a Steering System?
For those who don’t know, you can find a steering system in all vehicles around the world. It contains parts such as linkage, gears, steering wheels, racks (like Z3 Steering Rack) and more.
The purpose of this system is to handle the direction of the movement of your car. A steering system enables you to safely and carefully steer the wheel.
Aside from that, it also helps in driving the car with less difficulty.
2 Name of the Parts of a Steering System?
If you want to understand the steering system diagram, you need to know every single part that is included in a steering system.
All SUVs, trucks, and cars have a steering system that helps support the car and enable it to turn. The steering system consists of the following basic parts.
1) Steering Gear
At one end of the steering system, the pitman’s arm is connected to the steering gearbox rocker arm. On the other end, it’s linked to the drag link by a ball joint.
Aside from that, it also multiplies the steering changes of the driver so that the front wheels move more than the steering wheel.

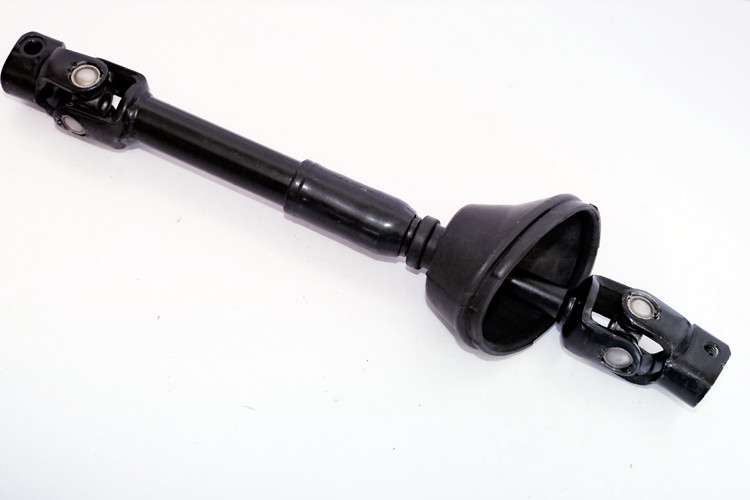

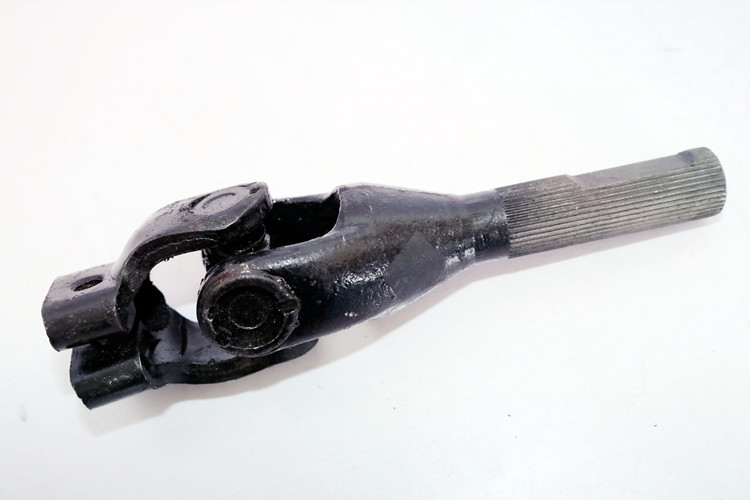

2) Steering Shaft
The steering shaft, also known as the steering column, is found inside a hollow column. Whenever you turn the steering wheel, you will also rotate the steering shaft.
Because of this, the movement is transferred to the steering box.
You can find the steering column at the top of the steering system. It’s directly connected to the steering wheel. The steering column is also joined to the universal joints and intermediate shaft.
3) Steering Linkage
The purpose of the steering linkage is to turn the steering wheels. This part of the steering system contains the assembly of the tie rod, spindle, steering arm, drag link, ball joints, and pitman’s arm.
- Steering Stops
The purpose of a steering stop is to restrict the angular deflections of the front wheels. Aside from that, it prevents the rubbing of tires against the frame.
You can find the steering stops at two different areas of the system. First, you can find them attached to the path of motion of the steering knuckle.
Second, you can also find them attached to the path of motion of the drop arm or steering arm.
- Tie Rod
The left- and right-side tie rods are linked to one another using a center link. This center link is also connected to the idler arm on the passenger side of your car and the pitman’s arm on the steering gear.
- Left Spindle and Kingpin
In a car’s suspension, the component that contains the spindle or wheel hub is the steering knuckle. It is connected to the steering system and suspension system.
The steering knuckle can also be called a hub, upright, spindle, and more.
The tire and wheel assembly are connected to the spindle or hub of the knuckle where the wheel or tire rotates while being held in a stable motion by the suspension or knuckle assembly.
- Steering Arm
The purpose of the steering arm is to transfer the turning force from the steering gear to the drag link.
The basic purpose of the steering system is to enable you to precisely and safely steer the car. Aside from that, the steering system also offers a way to lower your effort by making steering a lot simple and more comfortable.
- Drag Link
The drag link is attached between the steering arm and the pitman’s arm. It’s a single-piece forged component.
In other cases, the drag link has a ball joint socket at the end.
- Ball Joints
These joints are attached at both ends of the tie rod and the drag link. It performs the rotational movement and angular displacement of the tie rod and drag link.
- Pitman’s Arm
Pitman’s arm, also known as the drop arm, transforms the output torque from the steering gear into force to the drag link.
It’s attached to the steering gear’s sector shaft by a split joint. Either partial splines or full serrations are utilized for transferring the torque from the sector shaft to the pitman’s arm.
The clamping bolt tightens the split arm around the sector shaft. This is done to differentiate the female and male splines or serrations.
You will find a tapered hole at the end of the pitman’s arm, along with the drag link. On the drag link the ball stud is connected to this hole.
- Steering Wheel
As the name suggests, the steering wheel is the component of the steering system that enables the driver to steer the car.
Aside from that, it also contains the wiper switch, light switch, traffic indicator switch, and more. Other people call it a hand wheel or driving wheel. Still, it’s a form of steering control in cars.
You will find steering wheels in all modern land cars. This includes common cars, tractors, heavy trucks, light trucks, and buses.
3. Functions Of the Steering System
First of all, the main function of a steering system is to figure out the movement and direction of the truck or car.
The movement of the two wheels in front of your car relies on the entire steering system. Various vehicles have various steering systems depending on their model.
The steering linkage, steering gear mechanism, steering axle, and steering wheel make up the entire steering system. Every single one of these components performs various purposes.
The purposes of the steering system include:
1) Vibrations to the Steering Wheel
Manufacturers built the steering system in a way that you will feel less vibration on the steering wheel when driving your car on a bumpy road.
The reason for this is that the steering system can help lower the vibrations on the wheels.
Parts of the steering system that help lower the vibrations on the wheel include the cushions, collapsible string joint and brushes, and ball joints.
2) Controls The Wear and Tear of Your Tires
The steering system also controls the deterioration of your tire. Its job is to lower the deterioration of the tire. Aside from that, it ensures that the move is at a necessary angle.
The steering system also adjusts the position of the two front tires. It ensures better and light movement of the tires and lowers the deterioration of the tire.
3) Providing Stability to Your Car
The steering system offers stability to your car. Manufacturers designed the system in a way that if you want to turn the front wheel and keep it that way, you can do it.
You’ll always feel comfortable when the front wheels move the way you want them to. It offers you control of your car as well as the road.
The steering system helps the car move at a stable speed and in a stable approach.
4) Figuring Out the Direction of Your Vehicle
The main purpose of the steering system is to set up the direction of your car. You have to move the steering wheel so that you can make a turn while driving the vehicle.
If you turn the steering wheel to the left, the front wheel will also turn left. This makes the car take a turn in the correct direction.
Manufacturers created the steering system in a way that you won’t feel any difficulty turning your vehicle left or right.
4 Types of a Steering System
Now that you know some of the common parts found in a steering rack diagram, it’s also best that you know what the common types of steering systems are.
As of today, there are two kinds of steering systems available. This includes the electronic steering system and hydraulic steering systems.
1) Electronic Steering System
The electronic steering system is often called the power steering system. In cars, this type of steering system helps you steer your car by supplementing the steering effort required to turn the steering wheel. This makes it easier for your car to maneuver or turn.
Electronic steering systems utilize electric motors to offer assistance. That is why they’re called electronic steering systems.
2) Hydraulic Steering System
The hydraulic steering system works by utilizing a hydraulic system to multiply the force you apply to the steering wheel.
Usually, the hydraulic pressure comes from a rotary vane pump (power steering pump) or generator driven by the engine of the car.
3) Which One is Better?
A lot of people do not like hydraulic power steering systems since they’re heavy, complicated, take up a lot of space, and need a lot of maintenance.
On the other hand, the electronic power steering system only utilizes a couple of components.
Using steering torque sensors and steering angle sensors, plus complex software, manufacturers can adjust the amount of help.
Aside from that, electronic steering systems also offer steering feels to the driver by reproducing various road feel features for various driving conditions.
Furthermore, a hydraulic steering system utilizes 90% more engine power compared to an electronic steering system.
Since an electronic steering system draws a lot less power from the engine, it drastically lowers tailpipe emissions and improves fuel economy.
Also, getting rid of the drive belt and pulley from the engine lowers deterioration. This will prolong the life of your engine and help lower expensive repairs.
So, which one is better? The answer is the electronic steering system.
5 Types of Steering Gears
One of the components that you’ll find when looking at a steering system diagram is the steering gear. However, you must know that there are various forms of steering gear available.
Keep in mind that if the steering wheel is directly attached to the linkage, you’ll need a lot of effort to turn the front wheels.
Because of this, manufacturers use a reduction system to help drivers. This is where steering gears come in. You can find the steering gear inside a box known as the steering gearbox.
The types of steering gears include:
1) Double Lever and Cam Steering Gear
In this type of steering gear, you’ll find a unique worm known as a cam. It swaps the worm utilized in the sector and worm steering gear.
The cam has a cylindrical shape. Its activation component is a groove of the adjustable pitch made thinner at the center instead of the end.
This offers non-reversibility in the center part of the cam where most of the car steering takes place.
2) Peg Steering Gear and the Cam
In this type of steering gear, you will find a tapered peg connected to the arm of the rocker . The purpose of this is to engage in with the cam.
Whenever you turn the cam, the peg always moves together with the groove. This causes the rocker shaft to turn.
3) Roller and Worm Steering Gear
In this type, a two-toothed roller is connected to the roller shaft or sector. This is done to mesh with the threads of the shaft or worm gear at the end of the tube or steering shaft.
Whenever you turn the worm shaft, it leads to the roller moving in an arc. This will also turn the roller shaft. In addition to that, it also turns on the pin that connects it to the shaft.
You will find the roller attached to a ball bearing.
The worm shaft is connected to a bearing made to resist both end and radial thrust. This form of a steering gear is commonly utilized in passenger vehicles.
4) Recirculating Ball
This type of steering gear is commonly utilized in heavy SUVs, large trucks, and heavy cars. The steering shaft & the steering wheel is connected. At the end of the steering shaft is a threaded rod.
Whenever you rotate the steering wheel, it also turns the rod. Thus, it moves the block when it spins. This moves a gear that also engages the pitman’s arm.
5) Rack and Pinion
This is perhaps the most popular type of steering gear you’ll find in a steering rack diagram.
Almost every SUV, small truck, and car utilizes this kind of steering gear. This system is surrounded by a metal tube. At each end of the tube is a rack that protrudes.
A tie rod is connected to every rack’s end. Then, a pinion gear is linked to the shaft for steering. Whenever you rotate the steering wheel, this gear rotates and the rack moves.
The tie road at every end of the rack links to the steering arm. It’s also connected to the spindle.
6 What is the amount of Cash It will Cost you to Replace Your Steering System?
Since you’re learning more about steering systems, you’re probably planning on replacing your steering system.
However, it’s recommended that you leave the job to a professional. The reason for this is that it’s a complex job that requires skills and special tools.
The cost to replace your steering system greatly depends on a couple of factors. The biggest factor that you should consider is the make and model of your vehicle.
Aside from that, the age of your car will also affect the cost. As much as possible, get estimates from various professional car mechanics to help you understand how much the cost would be.
7 The Future of Power steering
Numerous improvements that will increase fuel efficiency are to be expected. A “steer-by-wire”, as well as “drive-by-wire” technology, is one of the most innovative concepts now under consideration. The link between the steering & the steering column would be completely eliminated by these technologies and would be replaced by an entirely electronic control system. In essence, the steering column would function similarly to the gaming controller you can purchase for your home pc.
8 Conclusion
Reading a steering system diagram can be extremely useless if you don’t know the parts included in the diagram.
Aside from that, it’s also difficult to understand the diagram if you don’t know how the parts work. By simply reading this article, you’ll have basic knowledge of the steering system and all of its parts.
